Back to E-Series Cost-Effective Magnetostrictive Position Sensors

Magnetostrictive Linear Position Sensors EJ-Modbus

Typecode: EJ
Cost-effective rod magnetostrictive position/level sensors
  • Rugged and fully enclosed design
  • Low power consumption design effectively reduces system heating
  • Adapt to harsh environment, IP68 protection class
  • Non-wear, non-contact measuring method
  • Absolute position output, not affected by power failure

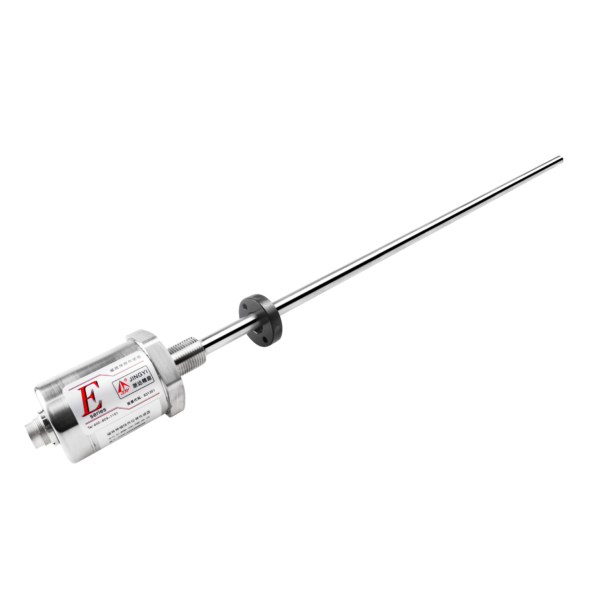

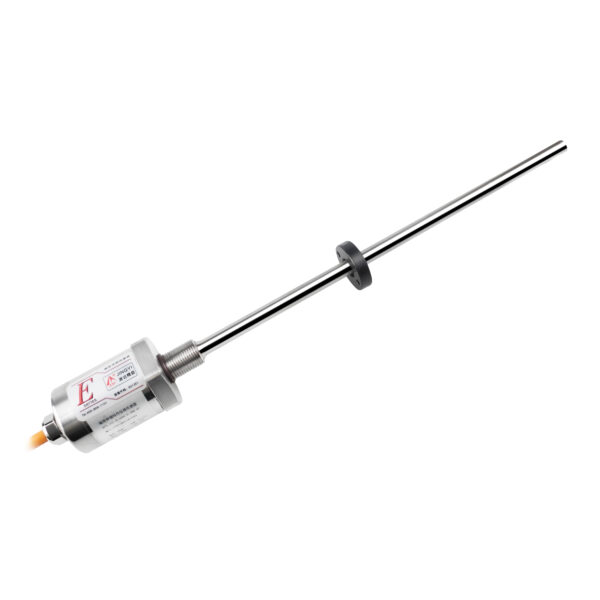

Magnetostrictive Linear Position Sensors EJ-Modbus
Inquiry Now
Your Name
Fill out this field
Email *
Please enter a valid email address.
Message
Fill out this field

Key Features

Output: Modbus

Measuring length: 25~5500

Repeat accuracy: <±0.001% of full scale, min ±10 µm
Non-linearity: <±0.01% of full scale, min ±50 µm
Operating voltage Ub: +24Vdc ± 20%
Ambient temperature: -40℃ ~ +75℃
Mechanical configuration: Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threads
Housing material: 304L Stainless steel
IP rating: IP67
Approval/Conformity: CE
